CTA 3111 Ford EcoBoost Fuel Injector Puller: Full Review & Use Cases
If you've ever fought a stuck fuel injector on a Ford EcoBoost, you already know the risk. Pull it wrong and you crack the plastic housing ring, mangle the injector, or eat an hour you didn't budget for the job. CTA Manufacturing built the 3111 specifically to take that risk off the table. Here's a look at what it does, how it works, and where it earns its keep in the shop.
What It Is

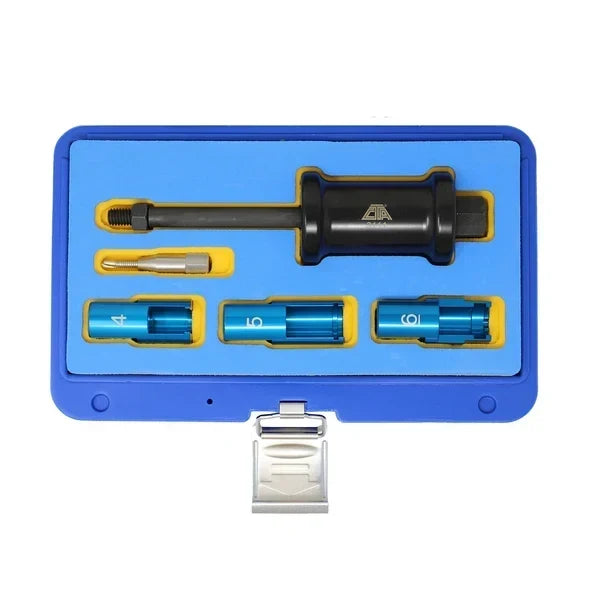

The CTA 3111 is a dedicated fuel injector puller tool kit built for Ford EcoBoost engines. It's not a generic pry-and-hope tool; it's engineered to grip the injector body without putting load on the plastic retaining ring that so many techs snap trying to muscle injectors out with screwdrivers, pry bars, or improvised pullers.
It threads onto a standard slide hammer, so you get controlled, incremental pulling force instead of a single risky yank. That matters on injectors that have been baked in place by heat cycles and varnish for years.
Engine and Vehicle Coverage
The kit is built around Ford's EcoBoost family, covering the 1.0L, 2.3L, 3.5L, and 3.7L variants. That spread covers a lot of bays:
- Ford F-150 (2010–2021, 3.5L EcoBoost)
- Ford Transit (2011–2023, 1.0L/3.5L)
- Ford Ranger (2019–2023, 2.3L)
- Ford Bronco (2021–2023, 2.3L)
- Ford Edge, Flex, Fusion, Taurus, Taurus X (3.5L)
- Ford Focus, Fiesta, EcoSport (1.0L)
- Lincoln Navigator (3.5L), MKS/MKT (3.7L), MKX/MKZ (3.5L)
- Mazda CX-9 and 3 Series (3.5L/3.7L)
- Mercury Sable (3.5L)
It's also compatible with common Ford injector part numbers HL3Z-9F593-A, BL3Z-9F593-B, DM5Z-9F593-A, and K2GZ-9F593-A. So if you're already looking up part numbers for a job, there's a good chance this tool applies.
Why It Matters & The Problem It Solves
EcoBoost injectors sit in aluminum heads with a plastic locating ring at the base. That ring is doing exactly one job — sealing and positioning the injector — and it's not built to survive a screwdriver dragging against it. Once it cracks, you're not just replacing an injector anymore; you might be dealing with a vacuum leak, a misfire comeback, or a customer wondering why the "quick fix" turned into a half-day job.
The 3111 solves this by transferring pulling force through the injector body itself, in a straight line, using leverage the slide hammer provides. No twisting, no side load on the ring, no guesswork about how hard is too hard.
CTA 3111 Use Cases
- Fuel injector replacement. The obvious one. When an injector fails or gets pulled for testing, this is the tool that gets it out clean the first time.
- Diagnostic injector swaps. Techs running injector balance tests or swapping a known good injector between cylinders to isolate a misfire need injectors out and back in without collateral damage (repeatedly, if necessary).
- Fuel system service on high-mileage EcoBoost engines. Carbon buildup and varnish on EcoBoost direct injectors is well documented. As these engines age into higher mileage, injector removal for cleaning or replacement is becoming a more regular ticket item, not a rare one.
- Fleet and dealer service work. Shops running Ford/Lincoln fleets (F-150s, Transits, Navigators) benefit from having a dedicated tool that speeds up a job that would otherwise eat labor hours in troubleshooting-by-hand.
Bottom Line
At $234.99, the CTA 3111 is a specialty tool, not an impulse buy, but it's priced like one for a reason. Compare that against one busted injector housing, a comeback, or the shop time lost improvising a removal method, and the math works in its favor for anyone doing EcoBoost fuel system work with any regularity. If Ford, Lincoln, or Mazda EcoBoost engines show up in your bay on a regular basis, this is the kind of tool that pays for itself the first time it saves an injector instead of destroying one.
