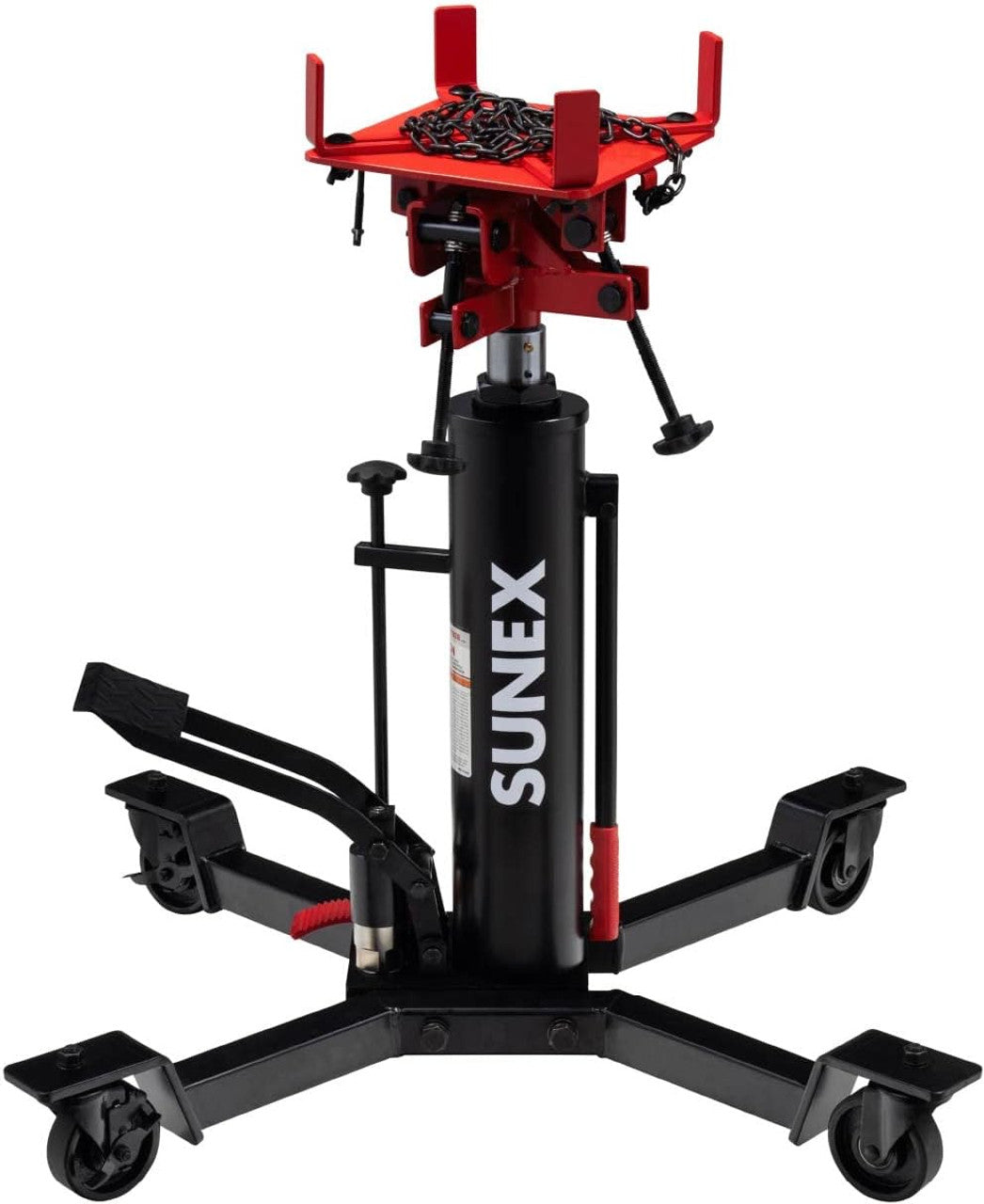

SUNEX 1000 LB. TELESCOPIC TRANSMISSION JACK (7793B)

The Sunex 1000 lb. Telescopic Transmission Jack (7793B) is designed to provide exceptional stability and support when lifting transmissions. Its robust construction ensures reliable performance, making it an essential tool for automotive technicians and DIY enthusiasts alike. This transmission jack features a telescopic design that allows for adjustable height, providing flexibility to work on various vehicles. The padded saddle protects your transmission during lifting and prevents damage, while the sturdy base ensures stability. With a lifting capacity of 1000 lbs., this jack is perfect for heavy-duty applications. Its easy maneuverability enhances efficiency, allowing you to complete your tasks quickly and safely.

Specifications:

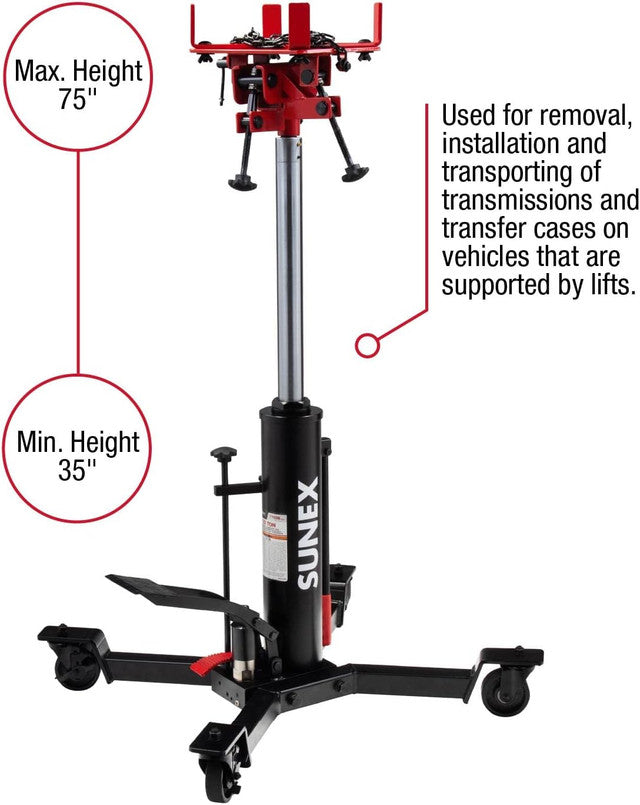

• Use for removal, installation and transporting of transmissions and transfer cases on vehicles that are supported by lifts.

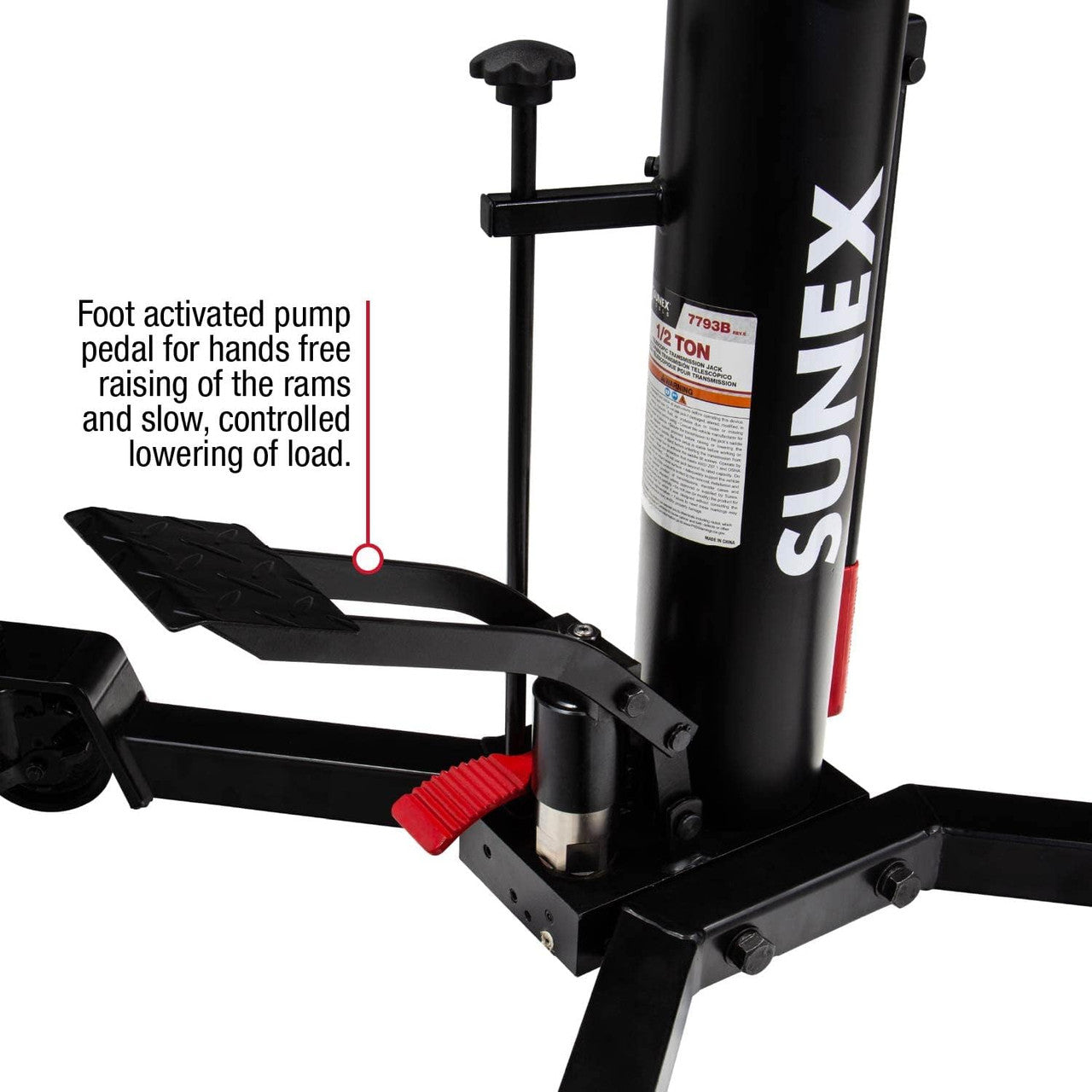

• Foot activated pump pedal for hands free raising of the rams.
• Lowered telepscopic rams enable the transmission to be transferred from the jack to the work table and extended to reach a miximum height of 74
• Foot activated release pedal provides slow controlled lowering of load

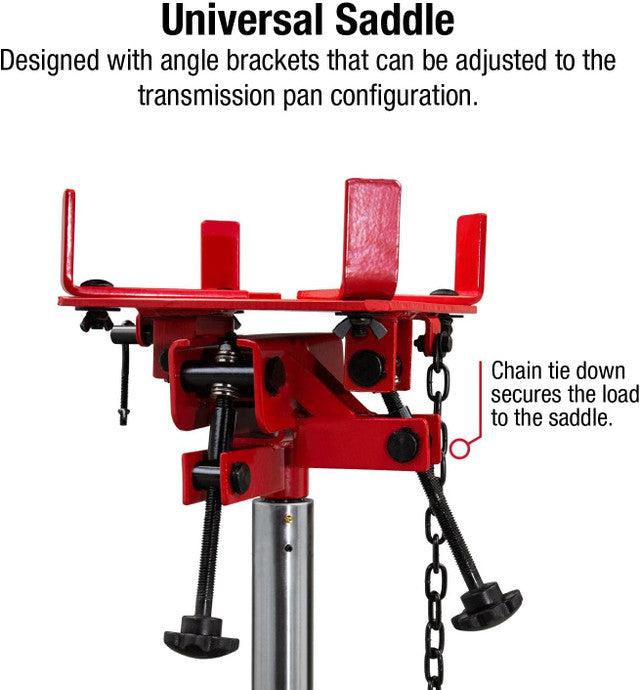

• Universal saddle with angle brackets that can be adjusted to the transmission pan configuration
• Chain tie down secures the load to the saddle

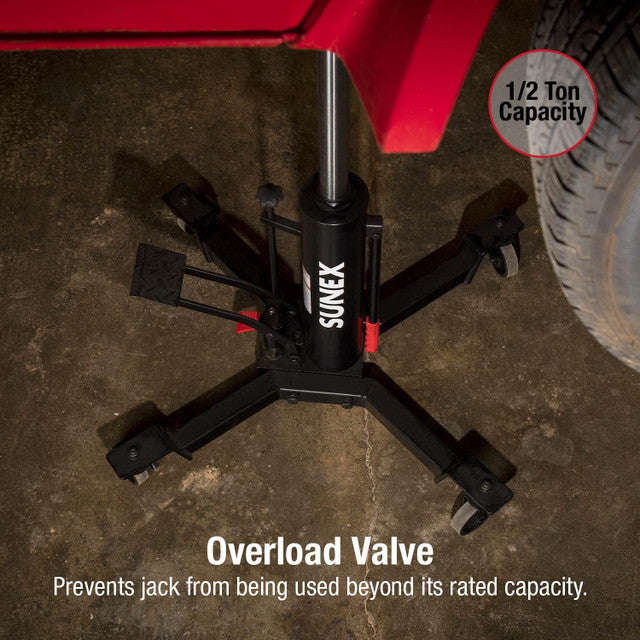

• Overload valve prevents jack from being used beyond its rated capacity.
• Low height: 35.5";
• High height: 79.5";
• Saddle tilt forward: 53 degrees;
• Saddle tilt backward: 30 degrees;
• Saddle tilt side to side: 10-30 degrees;
• Base size: 35" x 31.25"
• Weight: 163 lbs.
