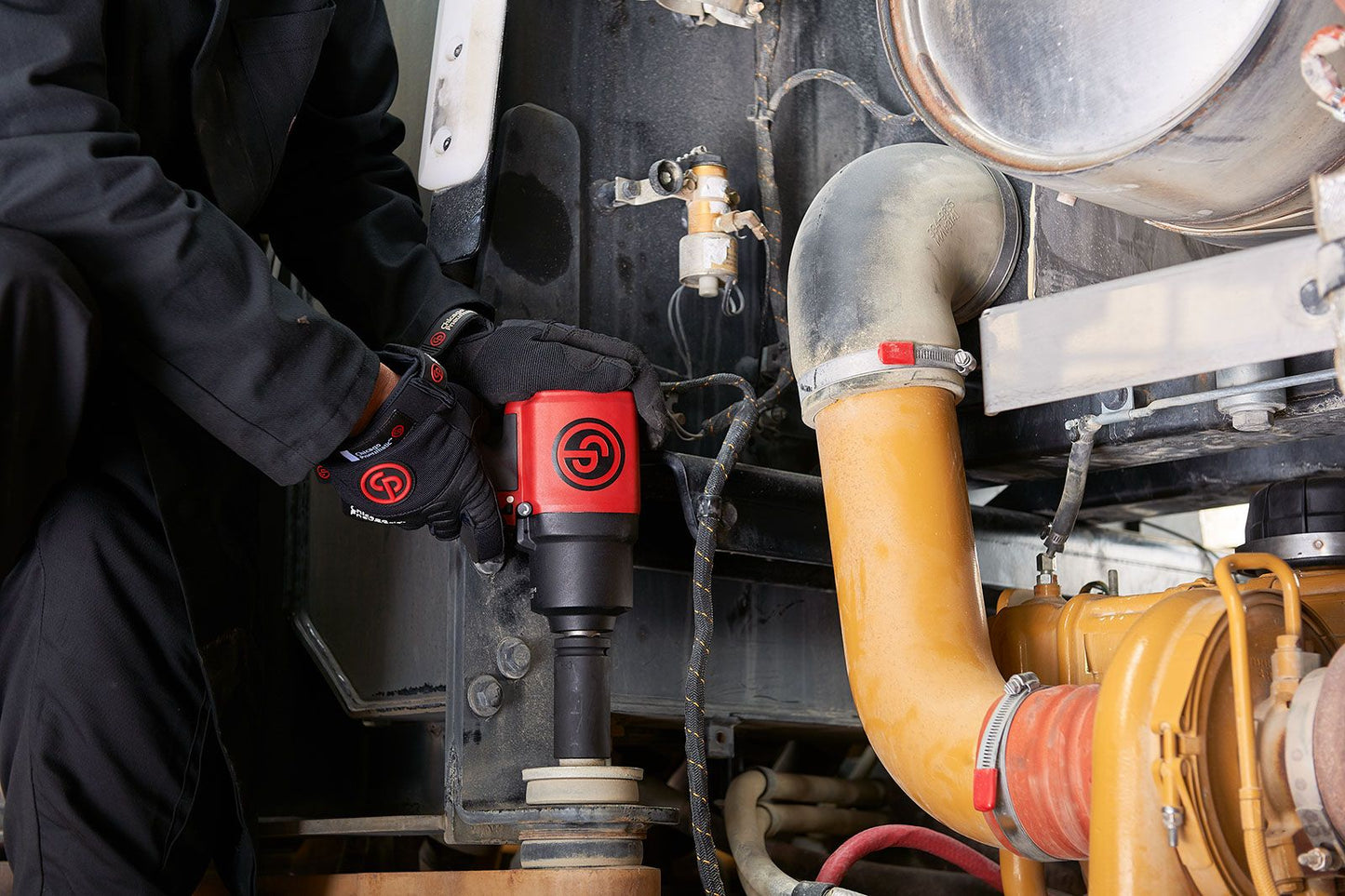

Chicago Pneumatic 7769 3/4" Drive Air Impact Wrench
Chicago Pneumatic 7769 3/4" Drive Air Impact Wrench
Chicago Pneumatic 7769 3/4" Drive Air Impact Wrench
Load image into Gallery viewer, Chicago Pneumatic 7769 3/4" Drive Air Impact Wrench
Load image into Gallery viewer, Chicago Pneumatic 7769 3/4" Drive Air Impact Wrench
Load image into Gallery viewer, Chicago Pneumatic 7769 3/4" Drive Air Impact Wrench

Chicago Pneumatic 7769 3/4" Drive Air Impact Wrench

Chicago Pneumatic
$524.99 USD
$524.99 USD
Sale Sold out
/
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Free Shipping over $25

Customer Support

Free 30-Day Returns

Benefits

  • 1,440 ft.lbs (1,950 Nm) of max torque in reverse position for high productivity
  • Composite housing and twin hammer impact mechanism for high durability
  • Due to its composite motor housing, it is both lightweight and compact, offering improved comfort.
  • One-hand power adjustment and reverse system - S2S technology - thereby limiting wrist and arm fatigue.
Design & Functions Value
Max working torque fwd 1080 ft.lbf
Length (L) 7.87 in
Min working torque fwd 300 ft.lbf
Air inlet thread size (in) 3/8
Impact mechanism Twin hammer
Body Composite
Sound Power 107.8 dB(A)
Max dynamic air working pressure 91 psi
Torque limited No
Output retainer type Dual
Clutch lubrication type Grease
Max torque reverse 1440 ft.lbf
Handle type Pistol
Clutch housing Aluminum
Output drive type Sq
Sound Pressure 96.8 dB(A)
Min hose diam (5 m hose length) 13 mm
Uncertainty vibration-K 4.9 ft/s??
Output drive size (in) 3/4
Blow per minute 1200
Weight 6.94 lb
Free Speed 6500 rpm
Starting system Trigger
