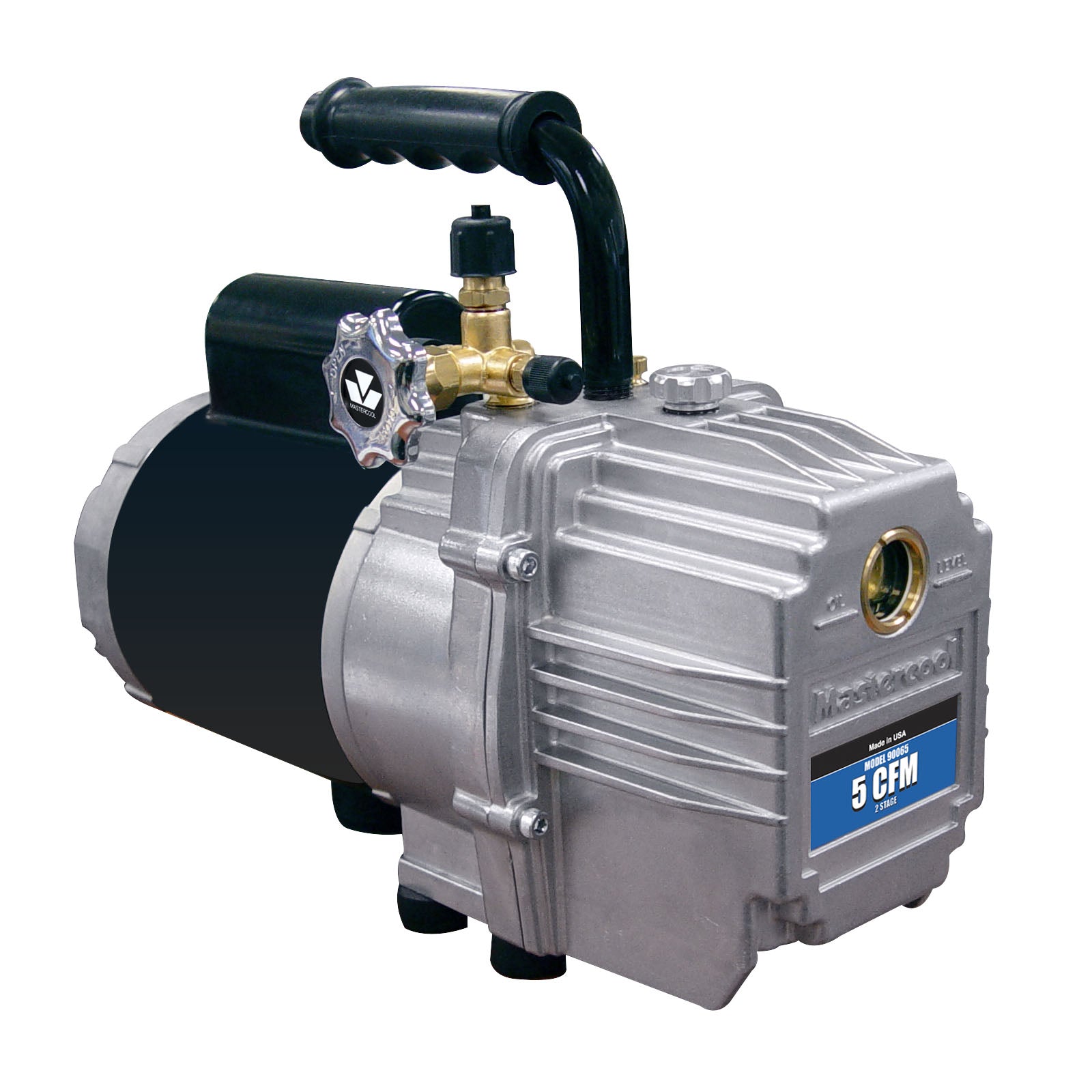

Mastercool 90065 5 CFM VACUUM PUMP (TWO STAGE)

A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.

This model is an excellent choice for small to medium sized systems (2.5 lb to 10 lb charge capacity). This two stage pump features a manifold valve to isolate it from the system and three inlet ports: 1/4?ǥ FL, 3/8?ǥ FL and 1/2?ǥ ACME (for automotive R134a systems).

SPECIFICATIONS:

• No. of Stages: 2
• Free Air Displacement: 5 CFM
• Ultimate Vacuum: 25 Microns
• Pump Motor: 1/3 HP
• Pump Speed: 1725 RPM
• Electrical Specs: 110 V/60 Hz
• Shipping Weight: 29?álbs (13.2 kg)
• Dimensions in cm: 37 x 15.5 x 27.5 x 24

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

Also Available:
90065-220

• No. of Stages: 2
• Free Air Displacement:?á119 lit/min, 142 lit/min
• Ultimate Vacuum: 25 Microns
• Pump Motor: 1/3 HP
• Pump Speed: 1425/1725 RPM
• Electrical Specs: 220?áV/50 Hz, 220 V/60 Hz
• Shipping Weight: 29?álbs (13.2 kg)
• Dimensions in cm: 37 x 15.5 x 27.5 x 24

90065-J?á(Japanese standard)

• No. of Stages: 2
• Free Air Displacement:?á119 lit/min, 142 lit/min
• Ultimate Vacuum: 25 Microns
• Pump Motor: 1/3 HP
• Pump Speed: 1425/1725 RPM
• Electrical Specs:?á100 V/ 50/60 Hz
• Shipping Weight: 29?álbs (13.2 kg)
• Dimensions in cm: 37 x 15.5 x 27.5 x 24

SERVICE INFORMATION:
Oil Capacity: 18 oz / 531 ml
Replacement Cartridge:?á90165-R
Seal Service Kit:?á90062-11-SEAL
