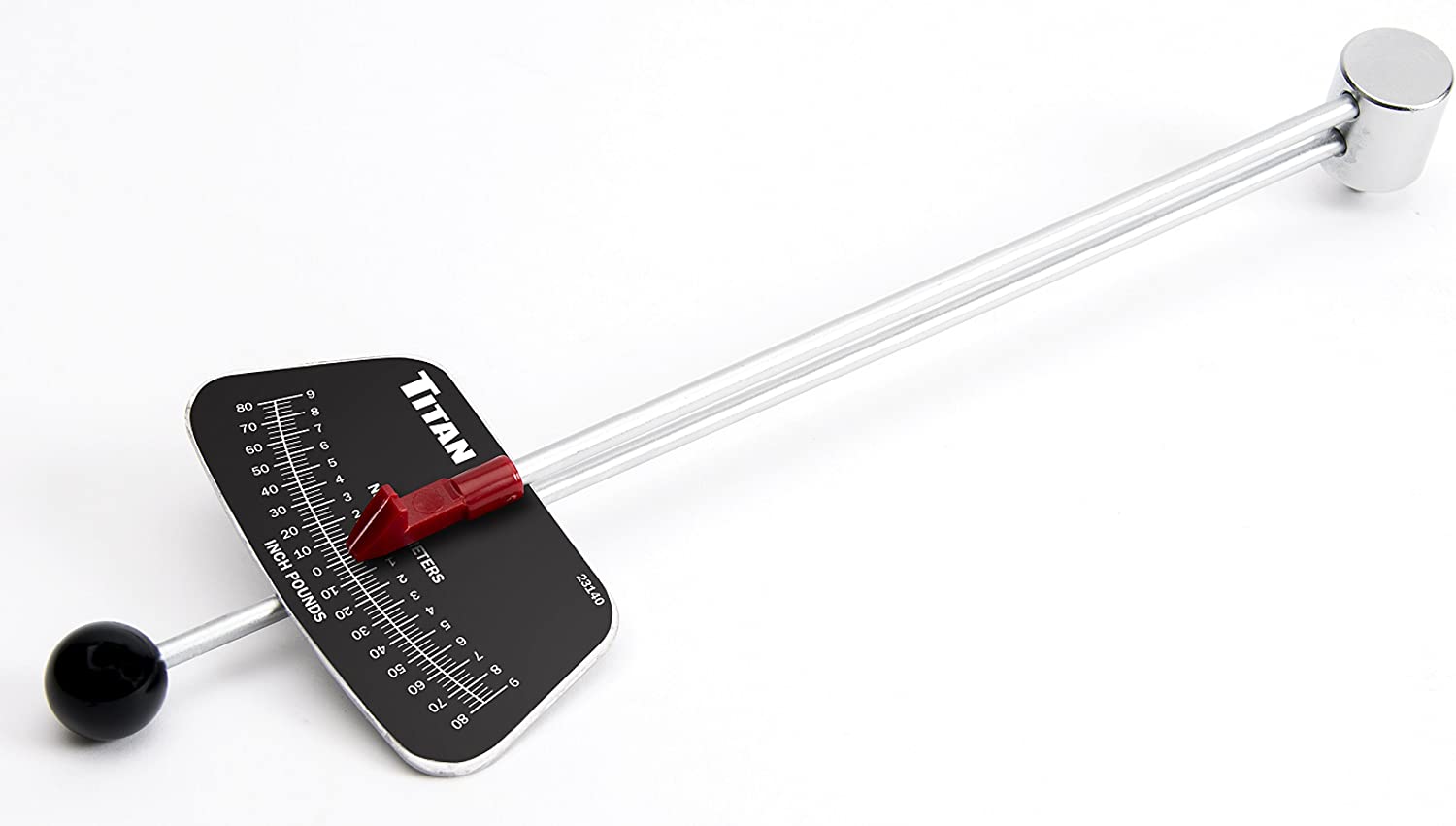

TITAN TOOLS 23140 1/4 IN. DRIVE BEAM TYPE TORQUE WRENCH

?á

• 0-80 In / Lbs (0-9 Nm)
• Works with right and left hand thread fasteners
• Deflection beam torque wrenches do not wear or fatigue over the lifetime of the tool insuring increased accuracy

1/4" Dr. Beam Type Torque Wrench 23140 0-80 In/Lbs (0-9 Nm) To ensure accuracy, verify that the pointer is aligned with the "0" calibration mark. The torque beam must float above the scale and not touch the scale at any point. If needed, the torque beam can be repositioned by gently bending back into place. Before attaching torque wrench, hand tighten fasteners until snug. The handle of the torque wrench should be held between index finger and thumb applying force to the center of the handle. Turning motion should slow as resistance increases and stop once the desired torque measurement is met. Torque measurements must be read from directly above the pointer. Do not read measurements from an angled position. For better accuracy, torque measurements should be met while the fastener is in the turning motion.
